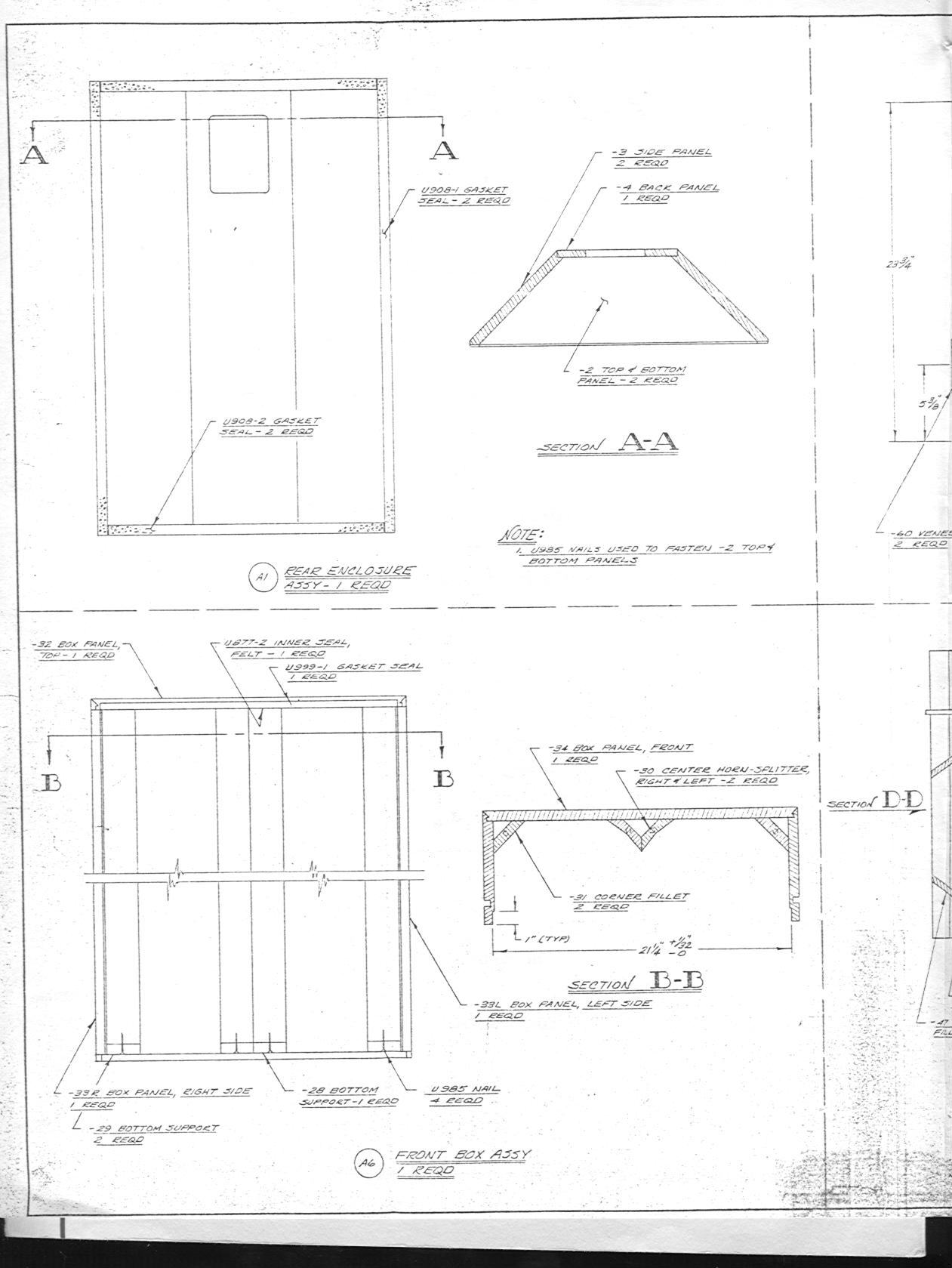

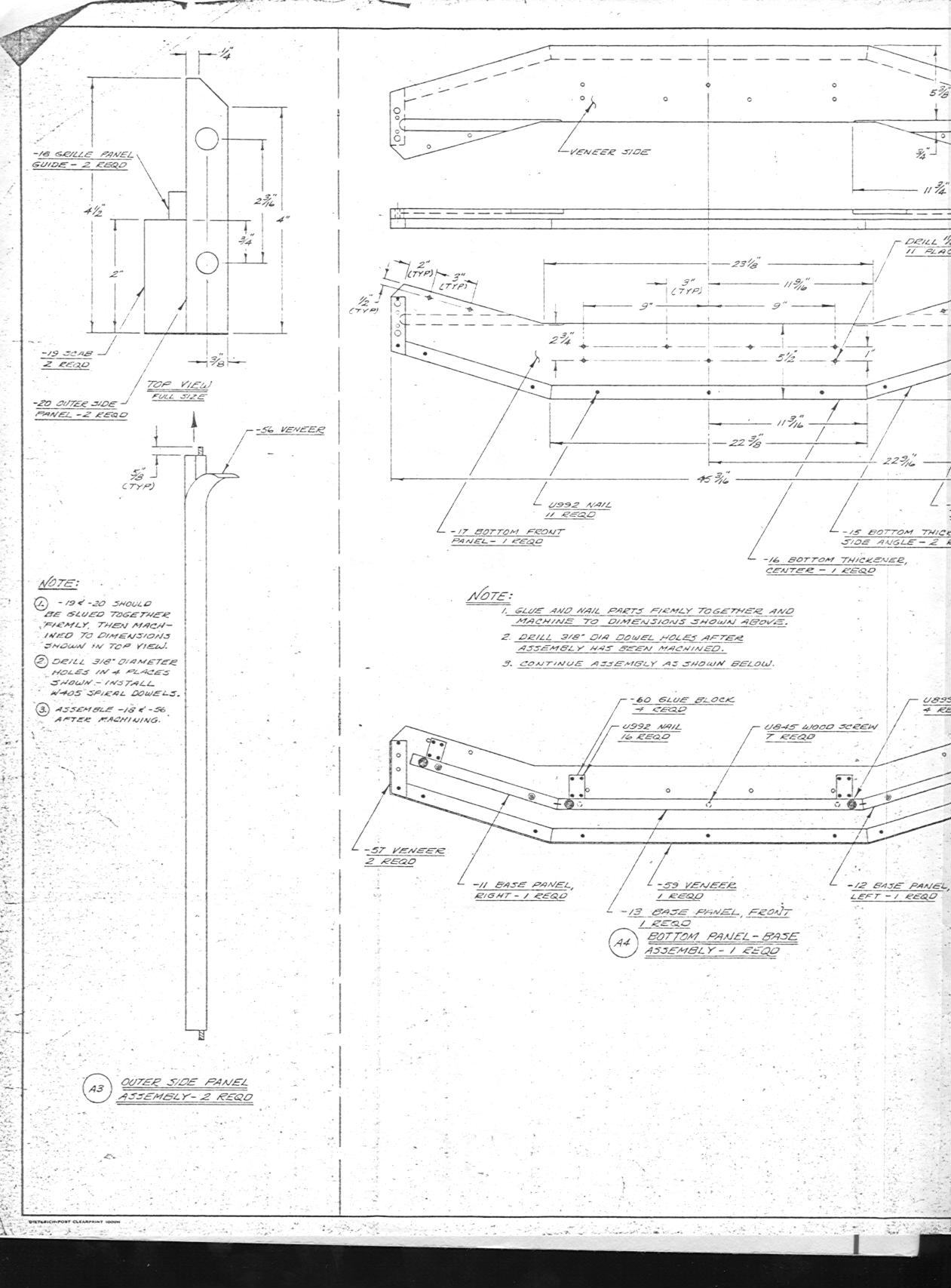

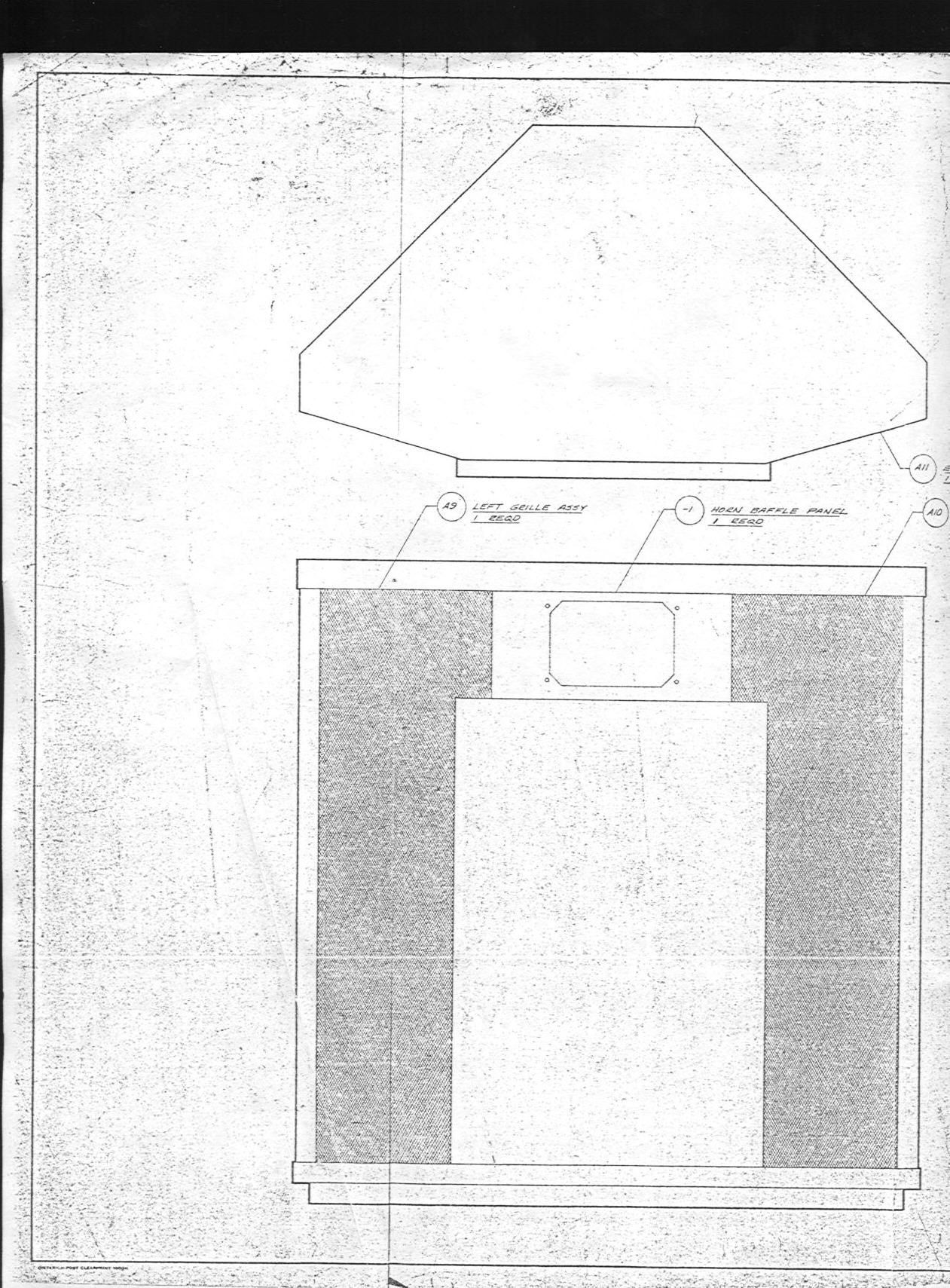

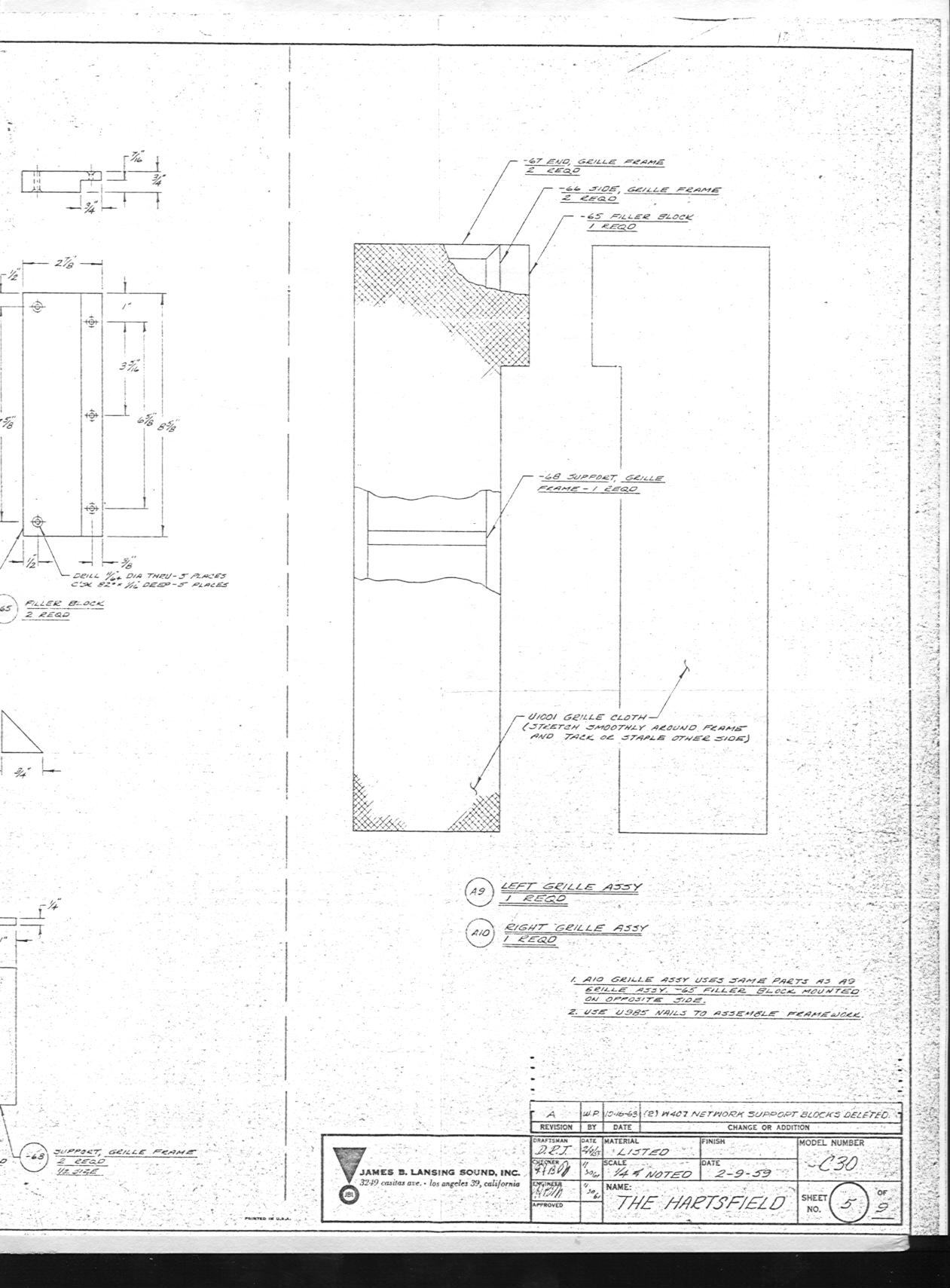

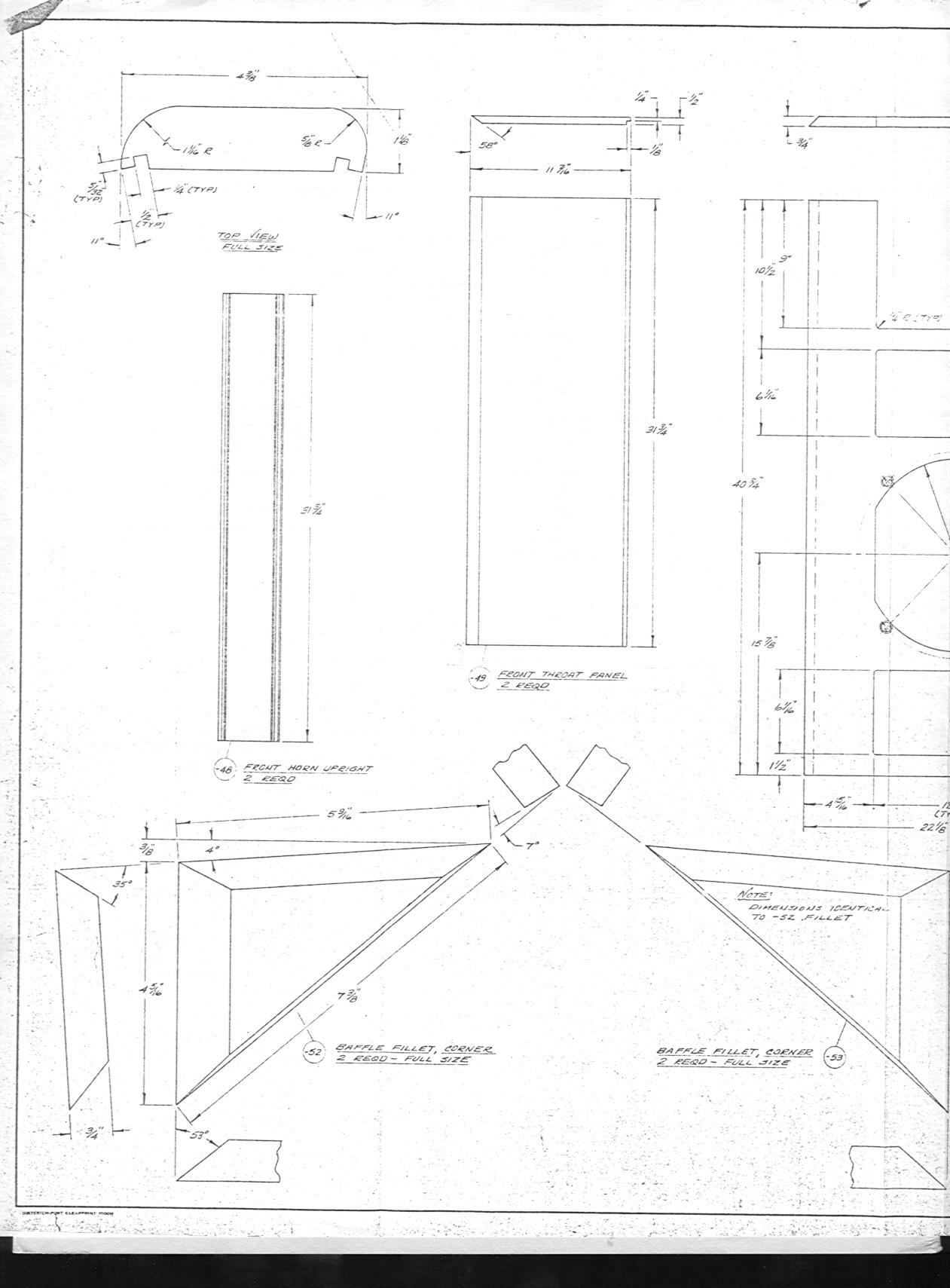

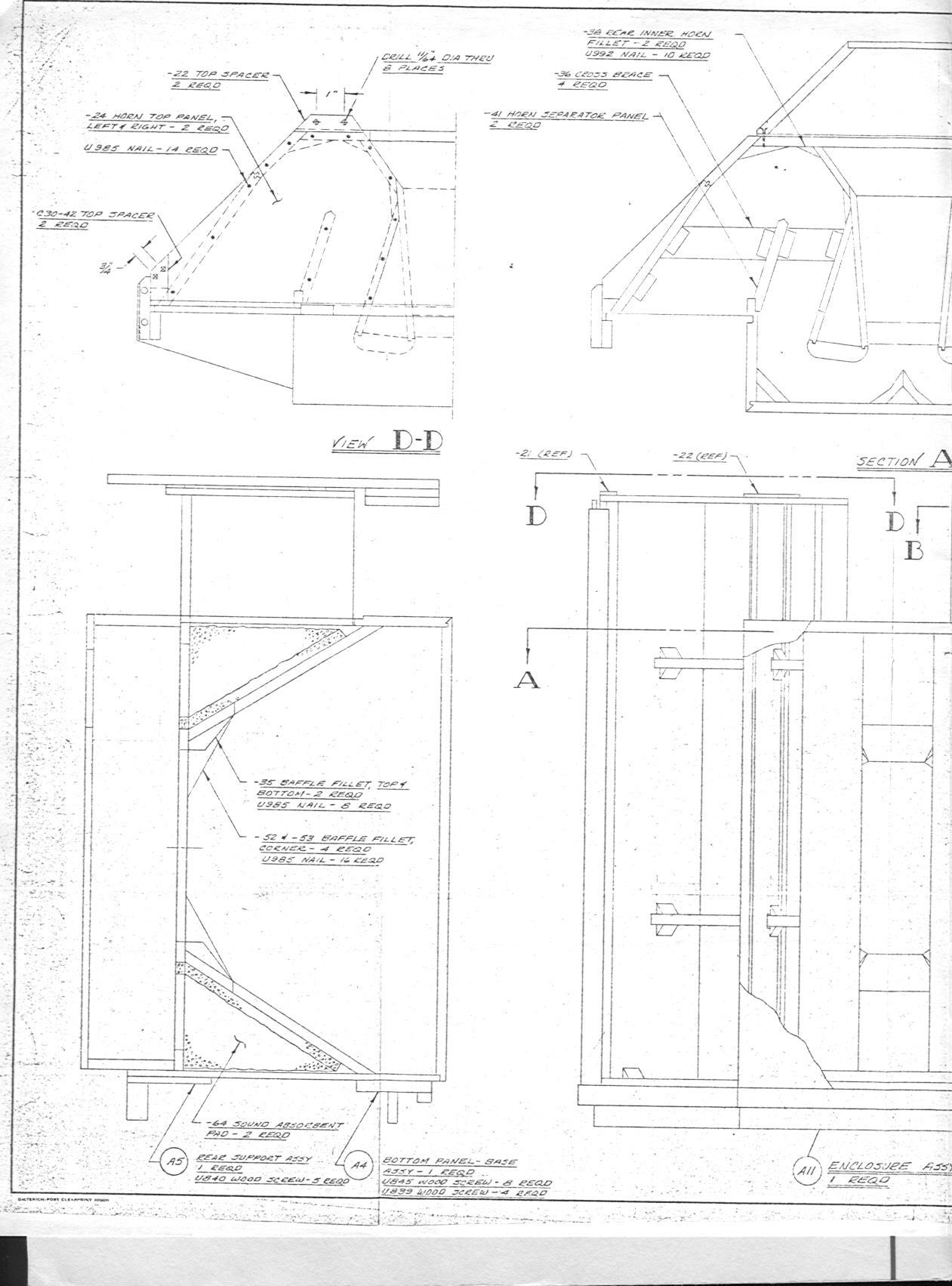

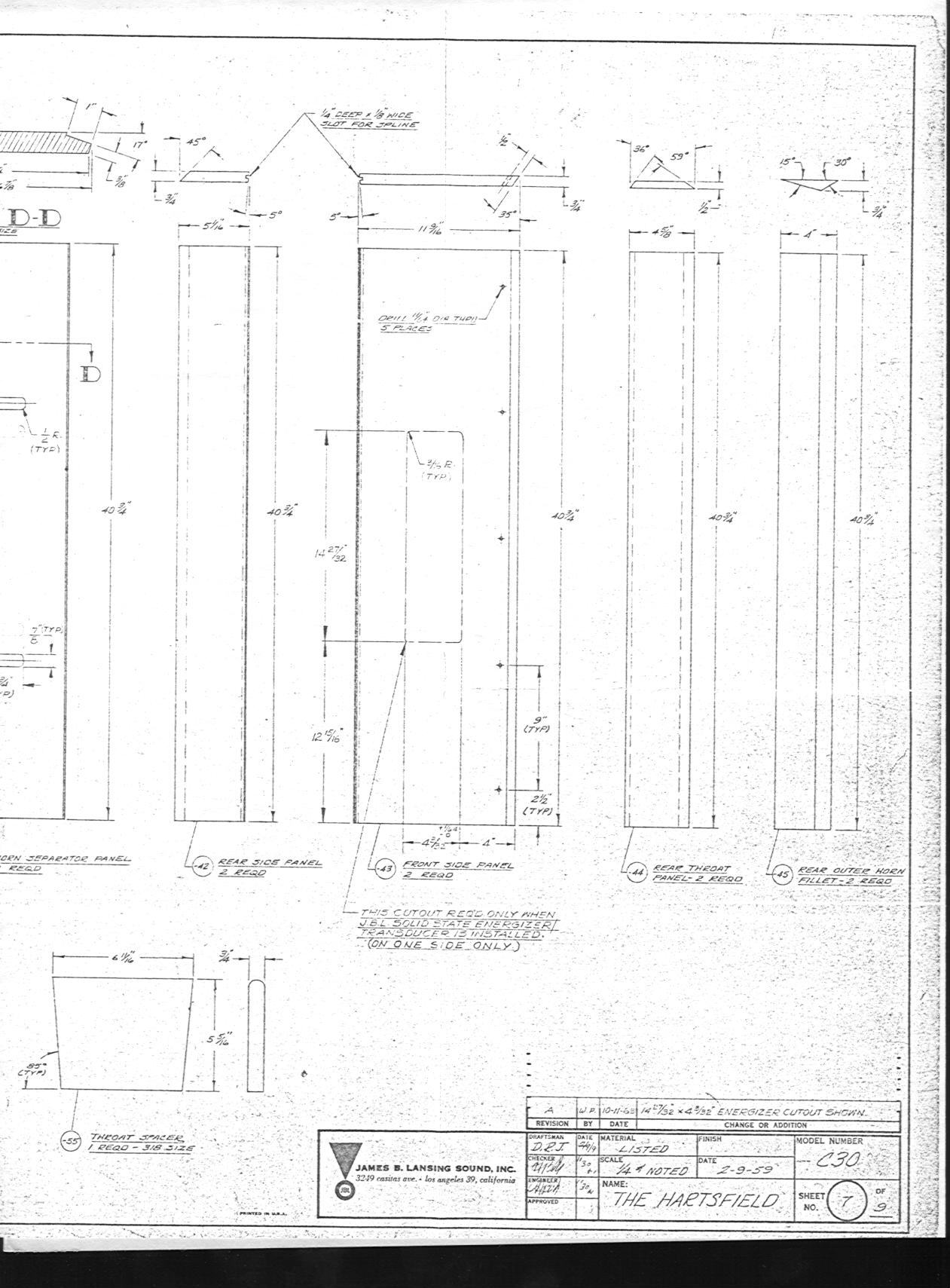

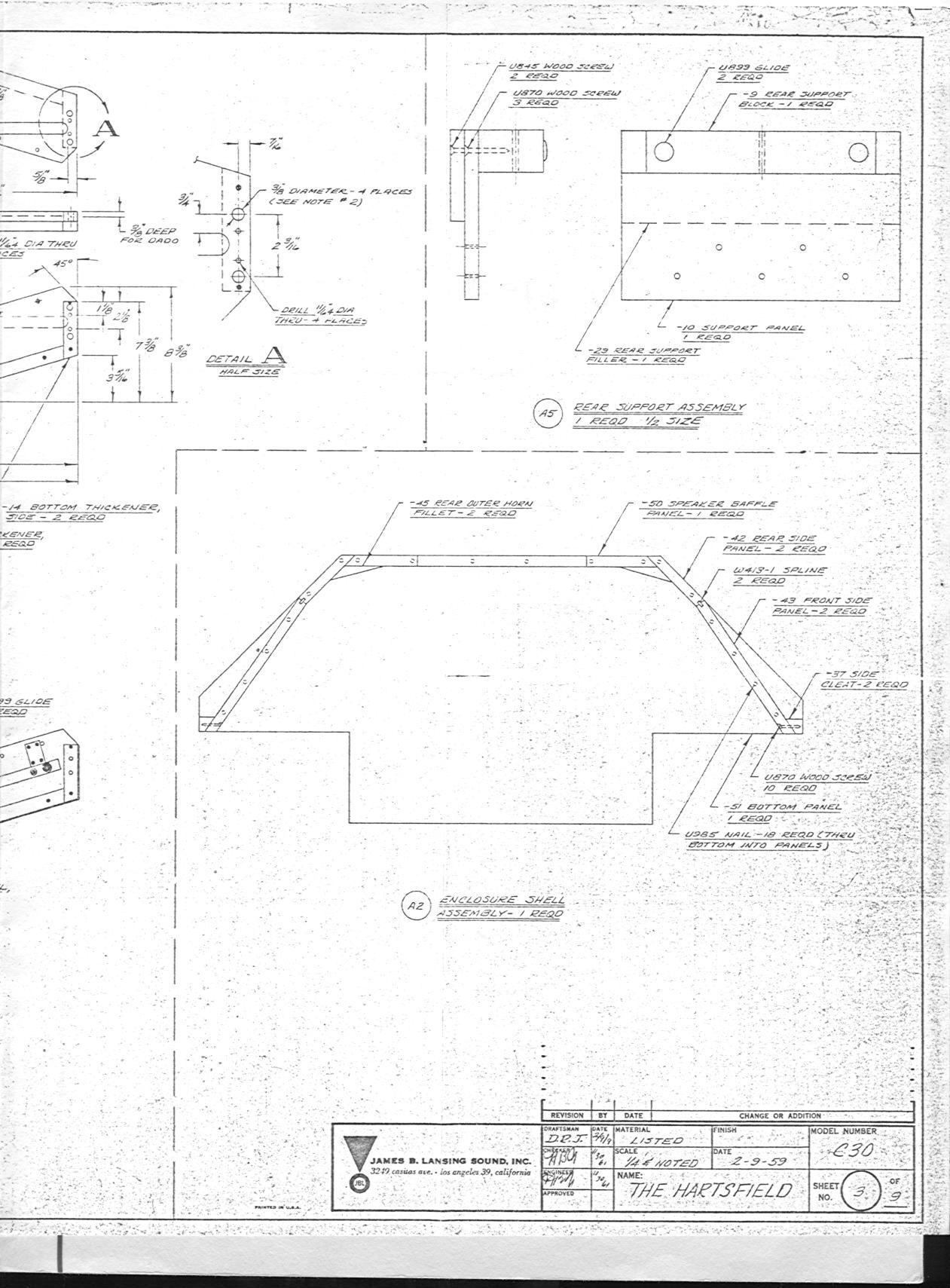

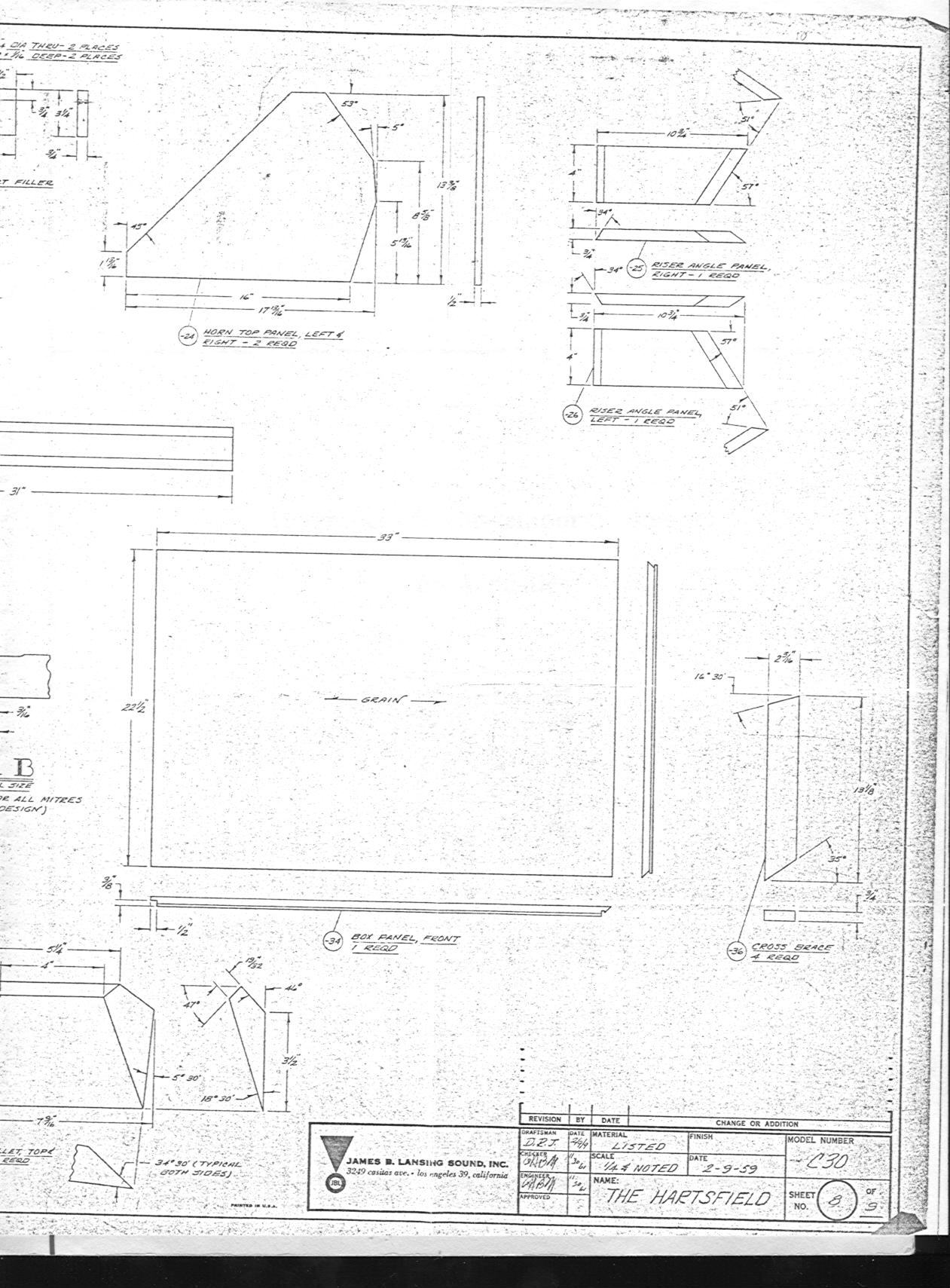

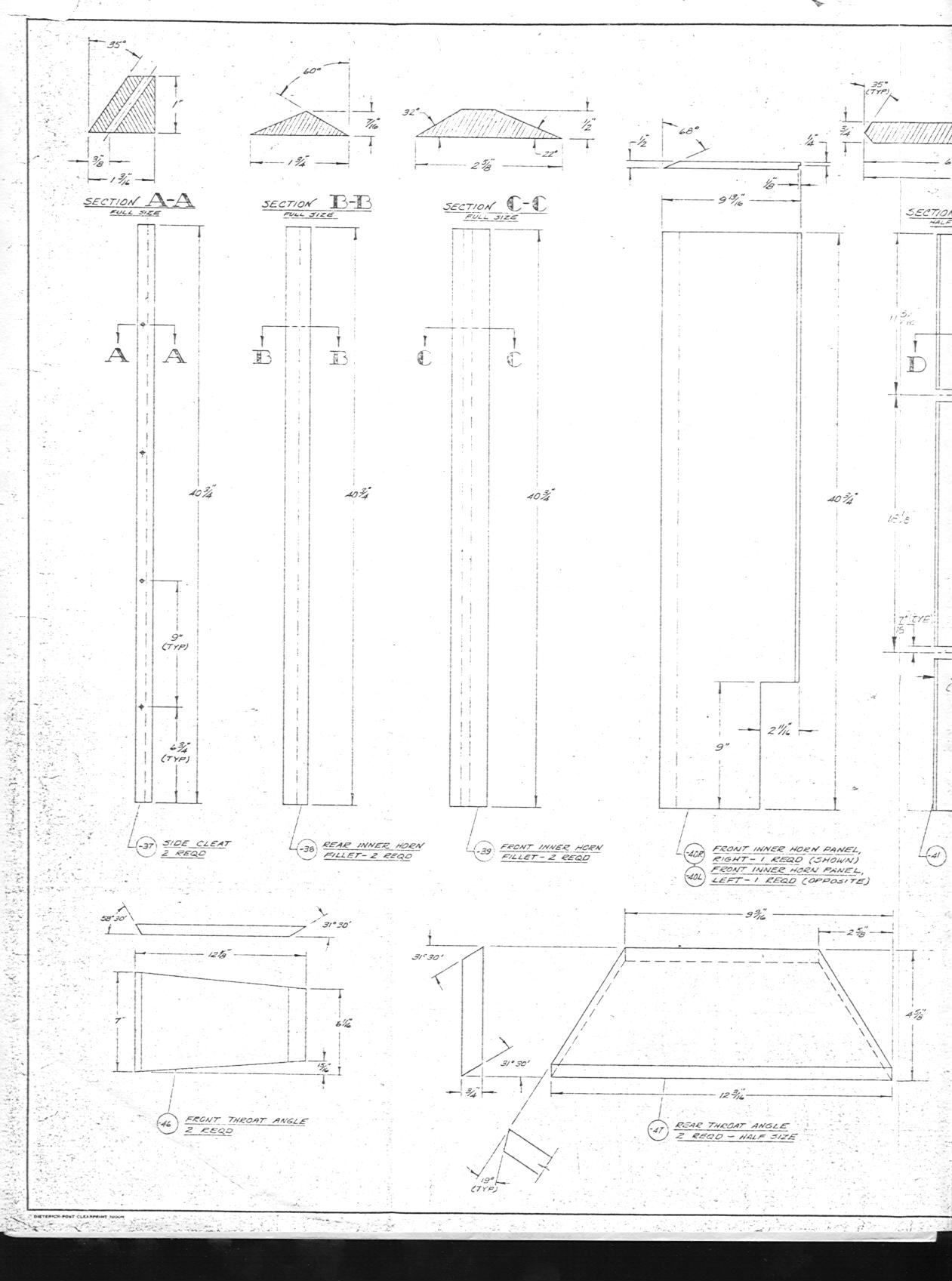

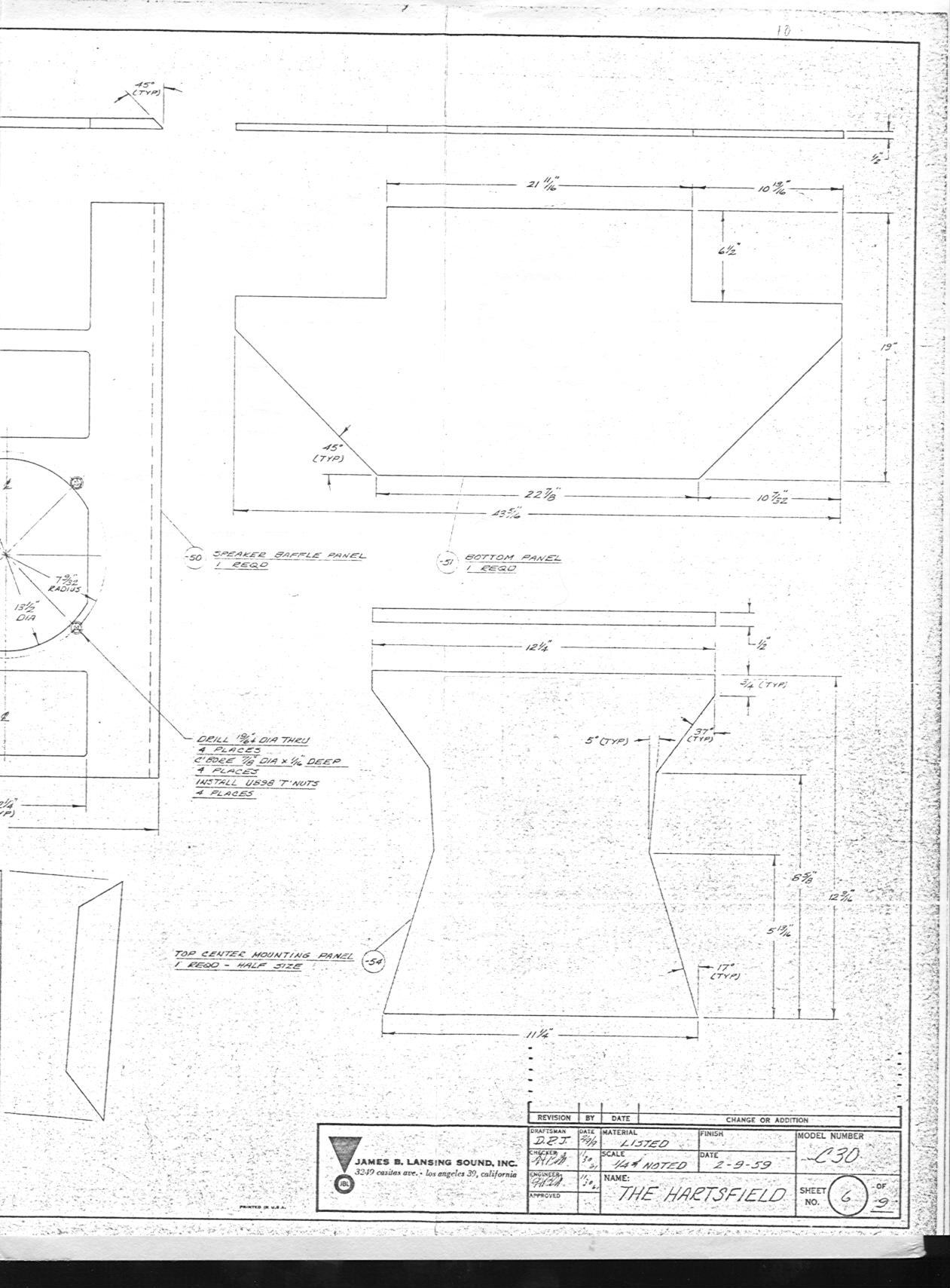

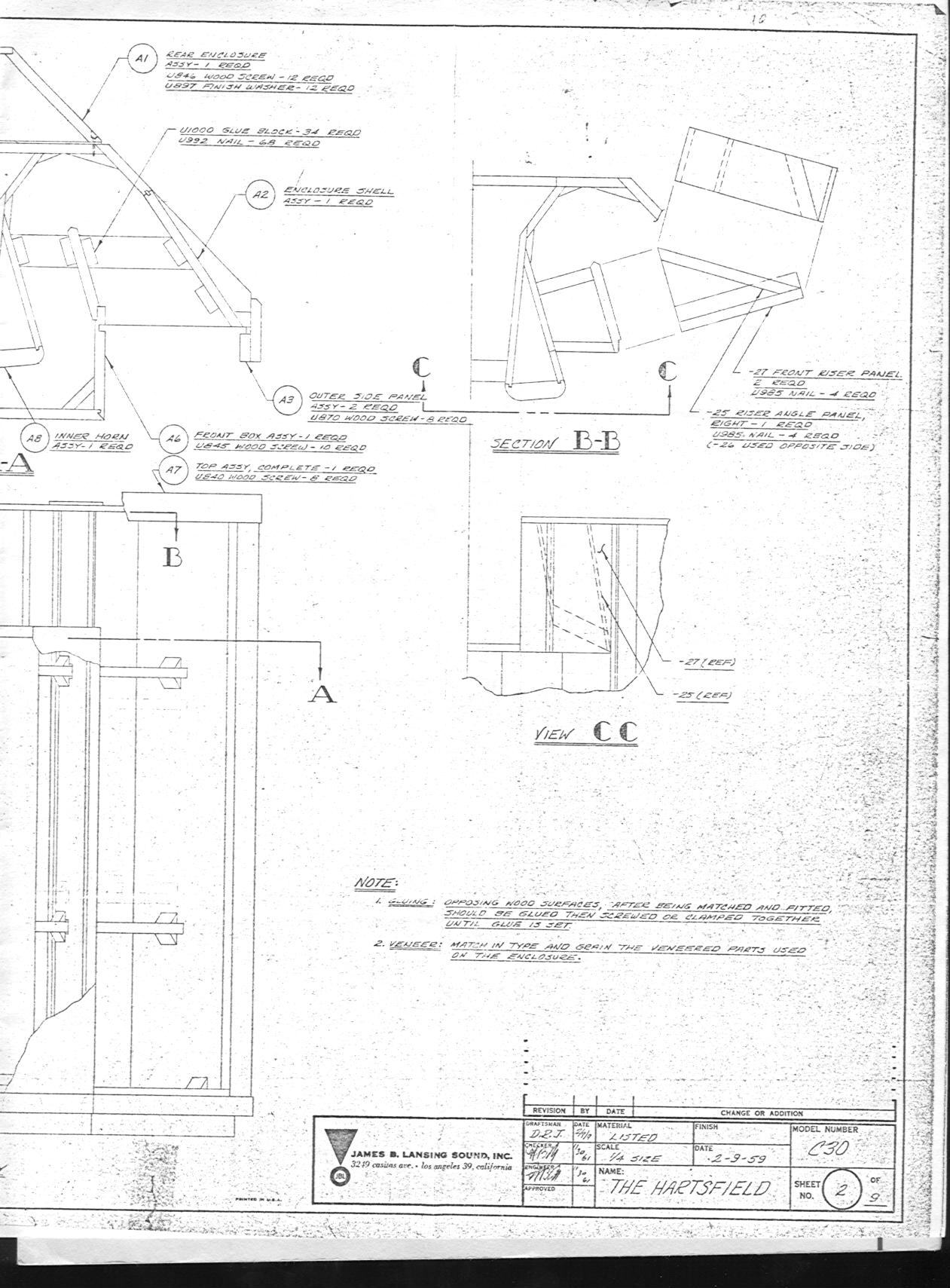

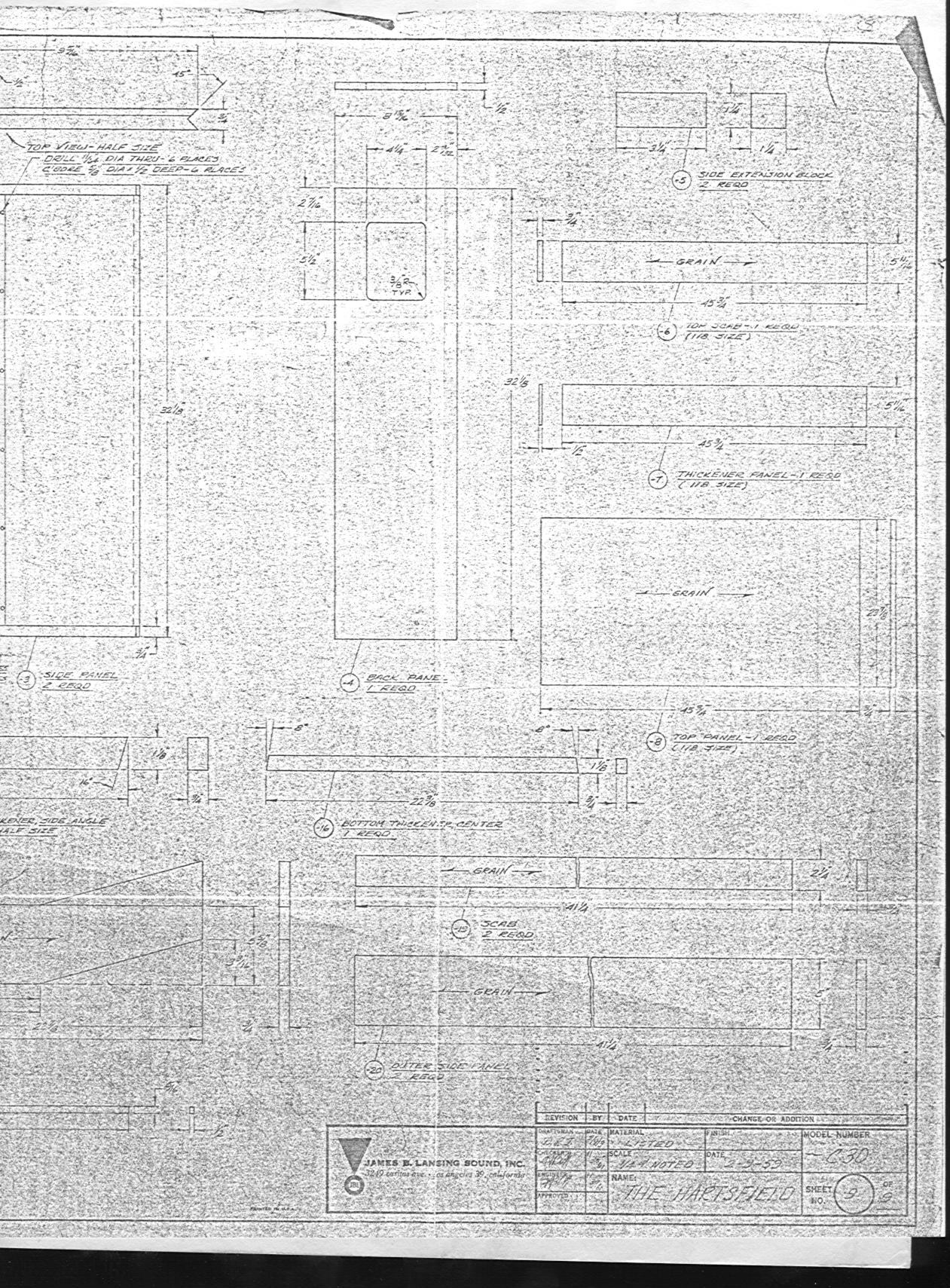

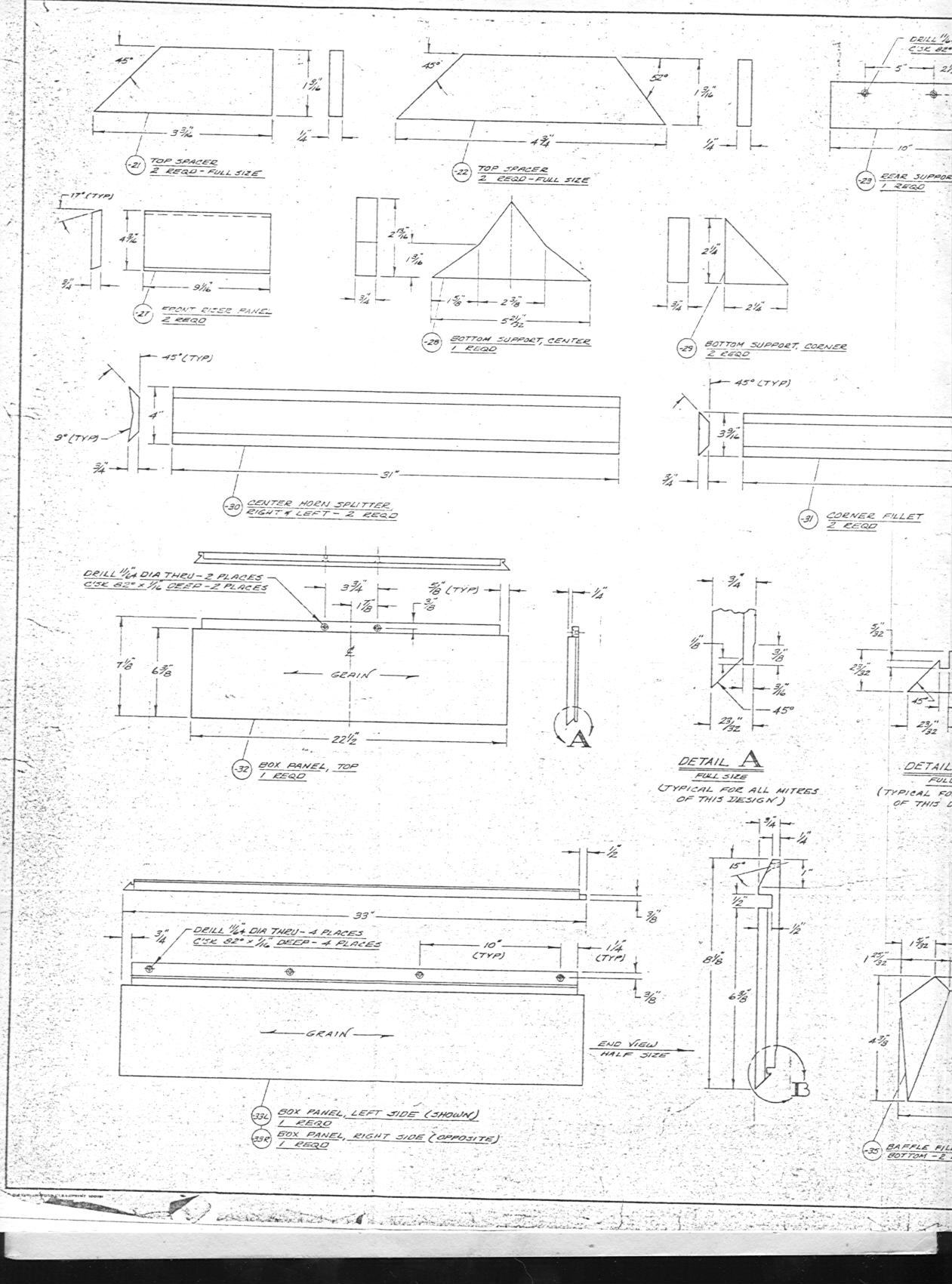

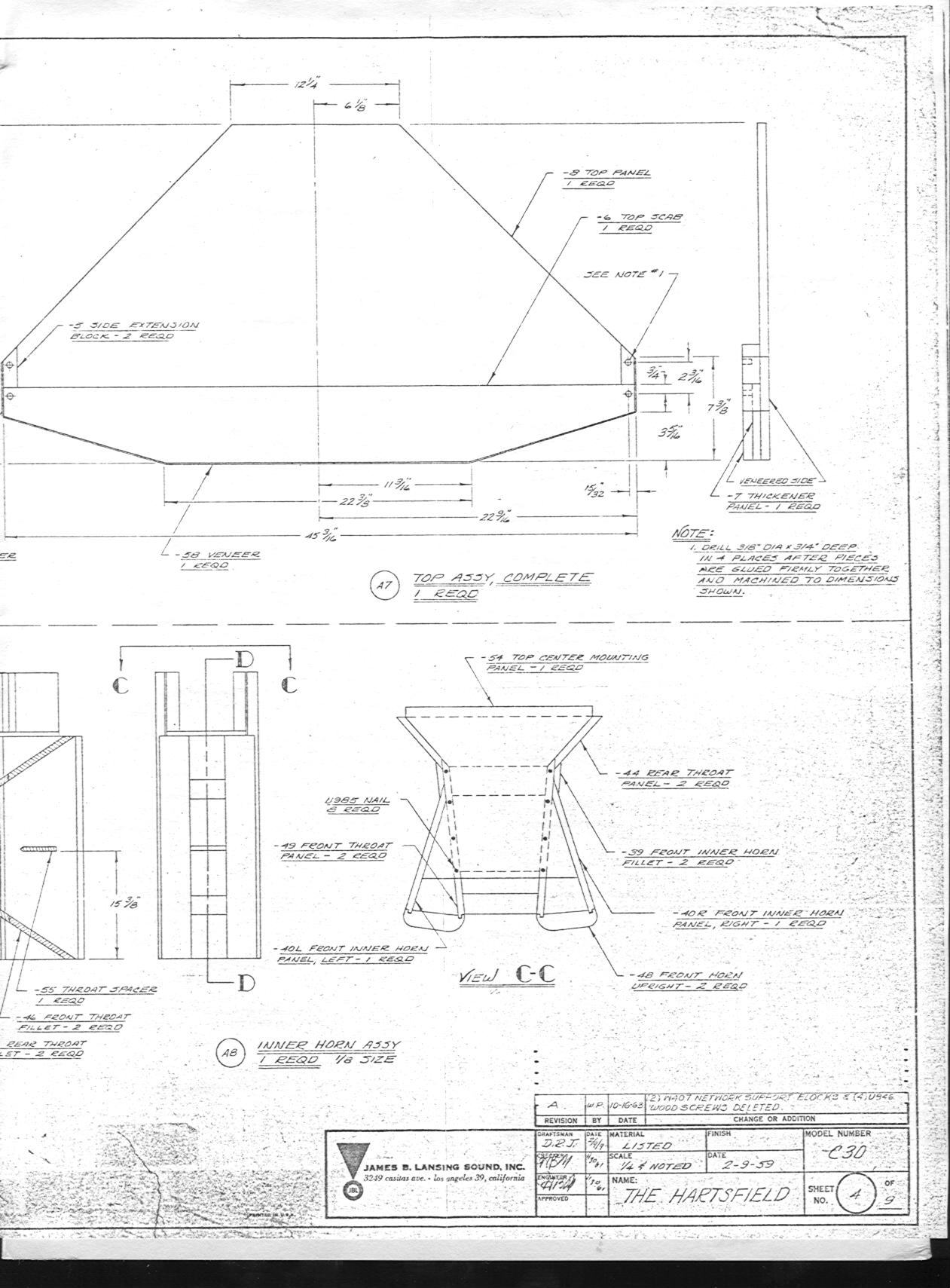

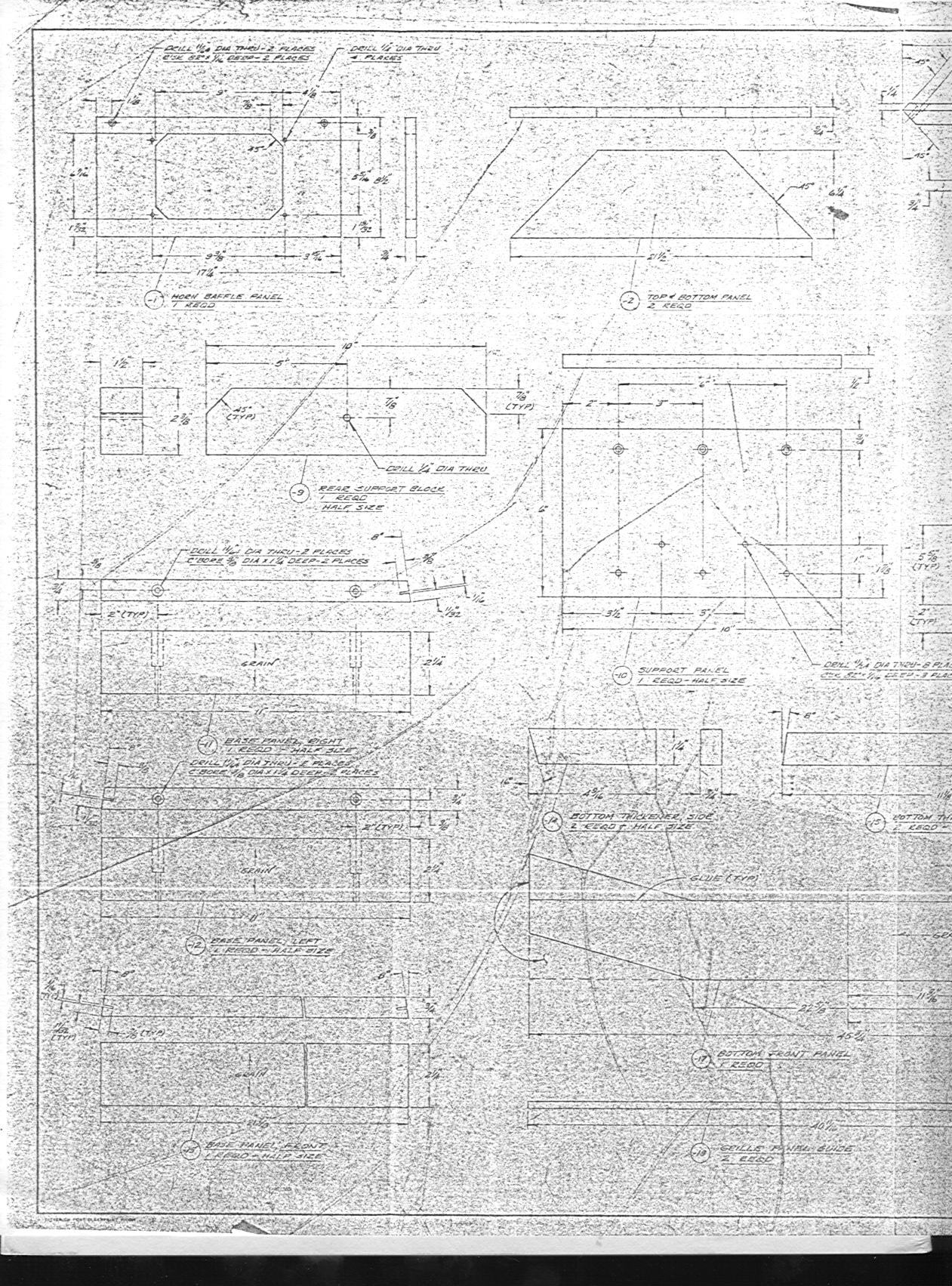

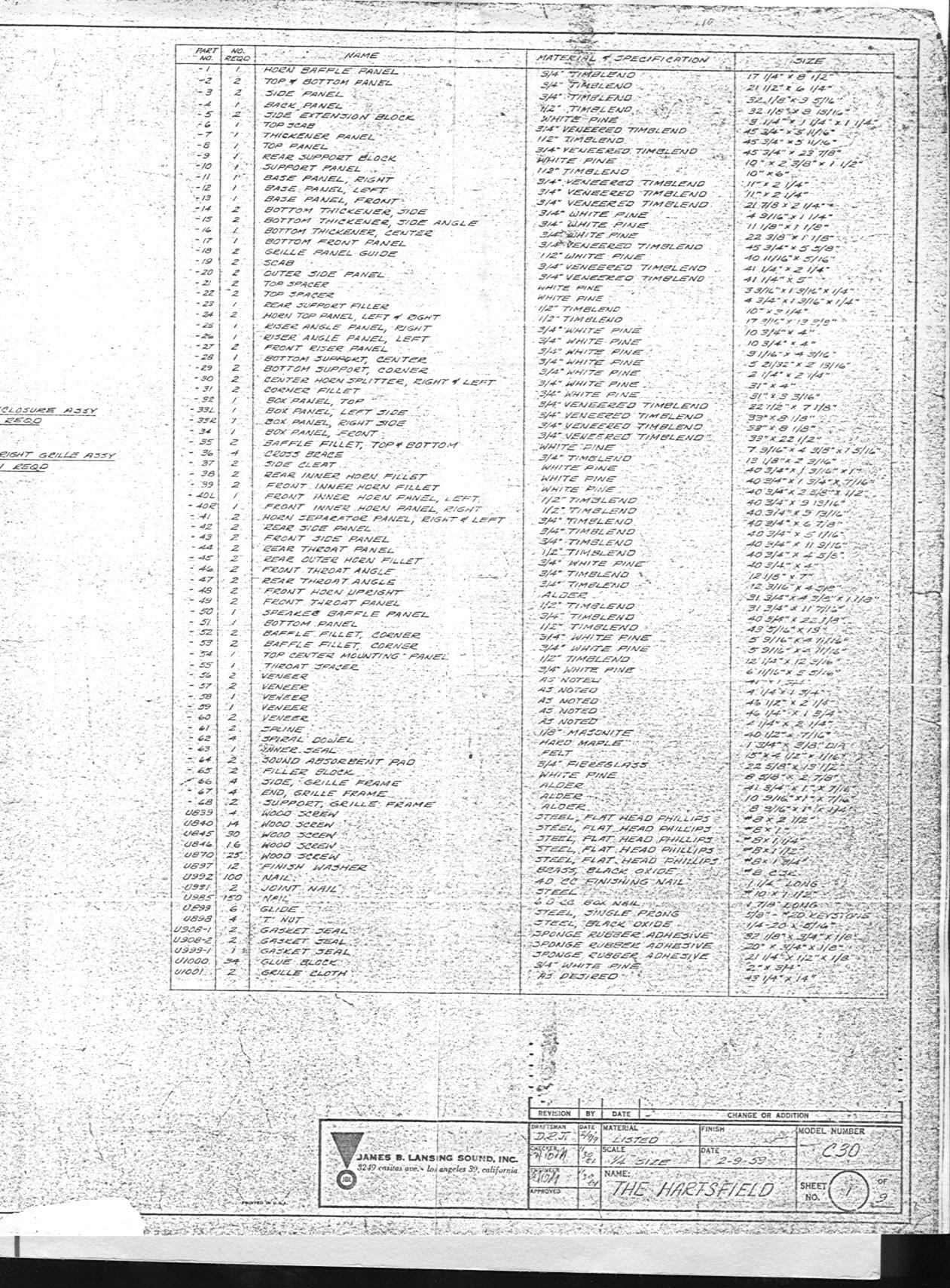

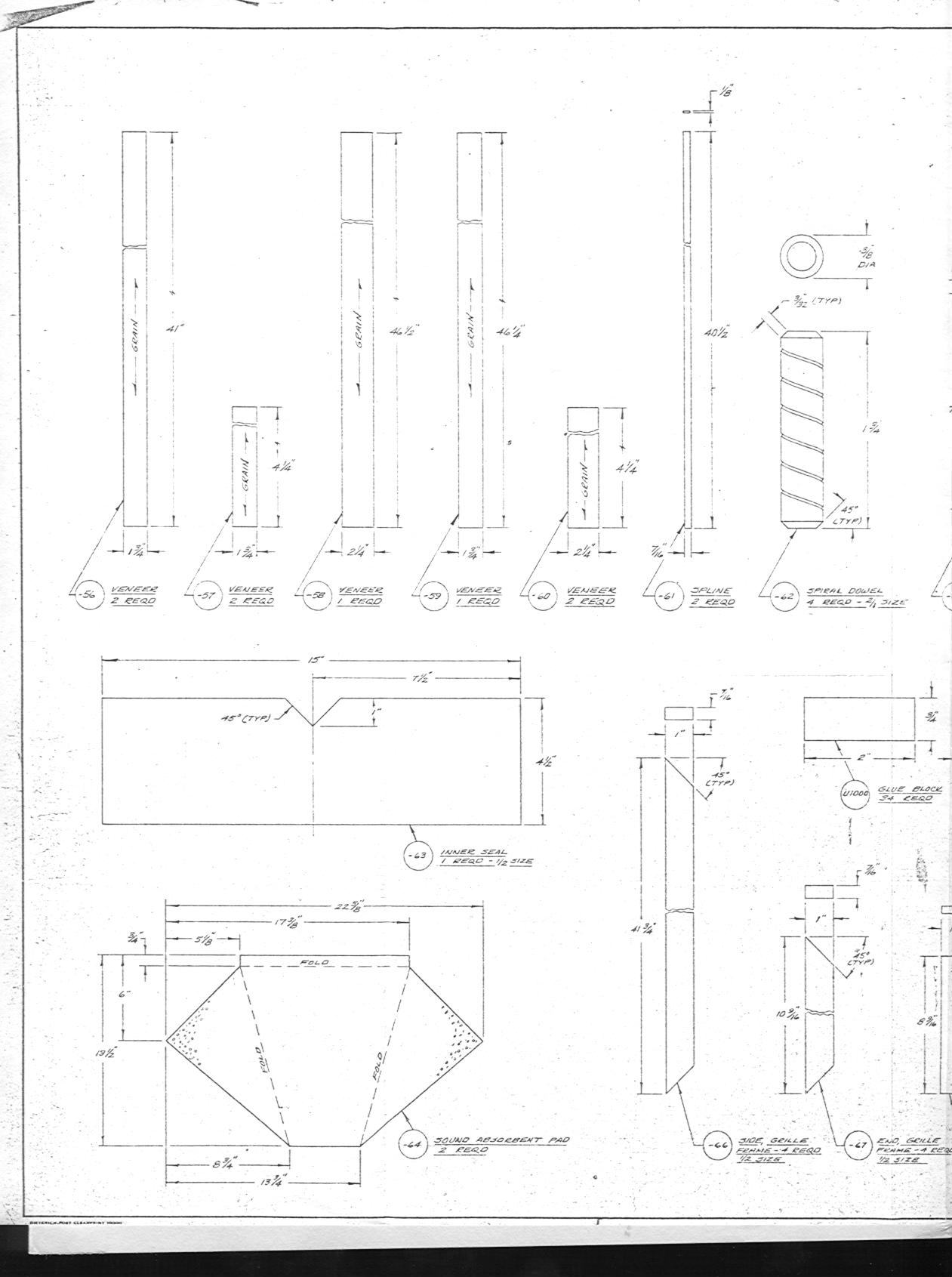

Below are the factory plans for the 1959 redesign of the Hartsfield.  The images are not to scale and the plans have been split in two due to scanner size limitations.  However, there should be enough detail for anyone committed enough to want to build their own Hartsfield

Plans Courtesy of Mark Gander and John Eargle
Harman International
